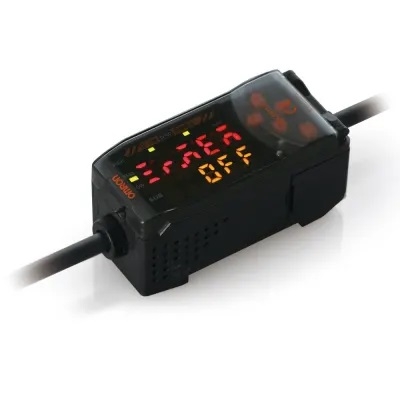

Bộ khuếch đại cảm biến laser: ZX-LDA11-N 2M

Bộ khuếch đại cảm biến laser: ZX-LDA11-N 2M

- Điện áp: 12 to 24 VDC

- Khoảng thời gian đo: 150 us.

- Linear output: 4-20mA

- Judgement outputs (3 outputs: HIGH/PASS/LOW): NPN

- Chức năng (Functions): Measurement value display, present value/set value/light level/resolution display, scaling, display reverse,
display OFF mode, ECO mode, number of display digit changes, sample hold, peak hold, bottom hold, peak-to-peak hold, self-peak hold, self-bottom hold, average hold, delay hold, intensity mode, zero reset, initial reset, ON-delay timer, OFF-delay timer, one-shot timer, deviation, previous value comparison, sensitivity adjustment, keep/clamp switch, direct threshold value setting, position teaching, 2-point teaching, automatic teaching, hysteresis width setting, timing inputs, reset input, monitor focus, linear output compensation, (A-B) calculations*4, (A+B) calculations*4, mutual interference*4, laser deterioration detection, zero reset memory, zero reset display, key lock.

- Kiểu kết nối: Có dây sẵn 2m

-
